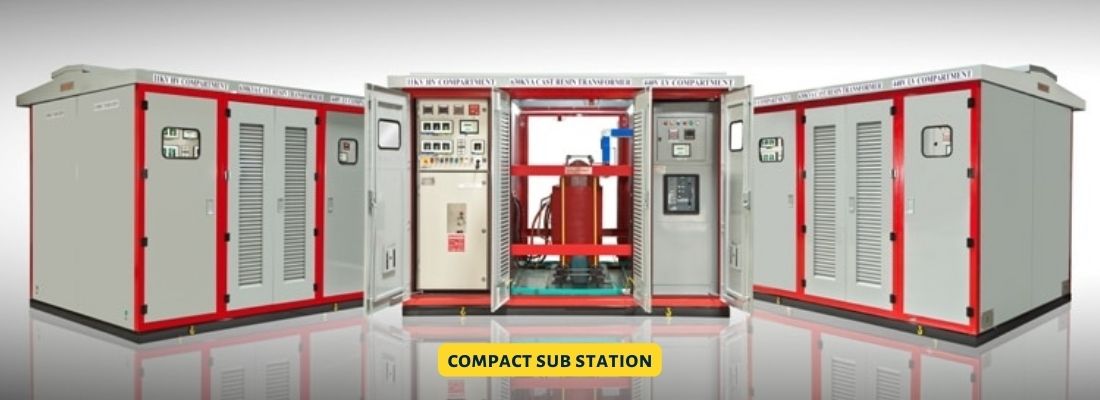

Compact Sub Station

Compact Sub Station

The CSS are designed, manufactured, fully assembled, wired and operationally tested in our workshops, therefore site works are minimal.


The CSS are compact and consist of power factor correction equipment, ring main unit / load break switch, circuit breakers, switchboards and dry / oil type transformers encased in robust enclosures with easy access to equipment.


The CSS can be ideally installed in residential and commercial complexes, industrial environments, utilities where free space is a major constraint.

Personal info
Your Address
Preferred date
Message

I accept terms and condition

Compact Sub Station Used in:

  • Hospitals



  • Airports



  • Pharmaceutical Plants



  • Railways



  • Commercial & Residential buildings



  • Mall



Compact Sub Station Specifications

Voltage 380/415/440V, 50 Hz, 3 Phase, 4 Wire AC System
Construction Type Cubicle Design / Floor Standing
Enclosure Fabricated with 1mm/1.6mm/2mm/2.5mm/3mm CRCA MS sheet
Degree of Protection IP 4X/5X/6X
Busbar Electrolytic Grade Aluminium / Electrolytic Grade Copper / Tinned Electrolytic Grade Copper –provided with colored PVC sleeves & of standard current density (1A/sq.mm for Aluminium & 1.6A/sq.mm for Copper)or customer specified current density
Enclosure Color RAL 7032 Shade (Industrial Standard) / Customer Specified Color
